10 mm Thin Wall Suprasil Precision Pressure EPR Tube, 8"
Code
733-3PV-7
• Precision NMR tube
• High Pressure
• Thin Wall
• 8" long
• High Pressure
• Thin Wall
• 8" long

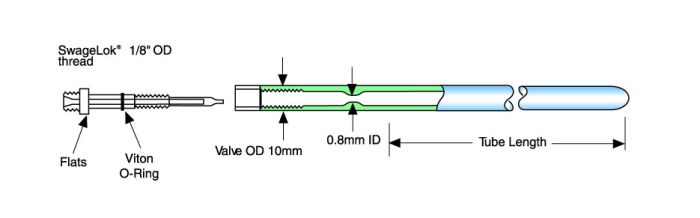

Pressure NMR Tubes are used for medium range pressure (<300 psi) and ultra vacuum (10-8 torr) experiments. The tubes are designed to connect to a 1/8" metal (SST or brass) vacuum line using Swagelok® fittings or a rubber vacuum hose using a glass connector (OF-60). The PV-ANV valve is made of PTFE and all other parts are Pyrex® or equivalent. Valve is opened by turning counterclockwise.
Due to the nature of glass, extreme caution should be exercised when using at elevated or reduced pressures as performance of tubes under pressure or vacuum cannot be guaranteed. Adequate safety shielding should always be used when working in these conditions.
Product Specifications:
• Length: 8 inches
• Thickness: 0.45 mm
• O.D.: 10.000 ± 0.013 mm
• I.D.: 9.1000 ± 0.013 mm
• Maximum pressure: 150 psi
Due to the nature of glass, extreme caution should be exercised when using at elevated or reduced pressures as performance of tubes under pressure or vacuum cannot be guaranteed. Adequate safety shielding should always be used when working in these conditions.
Product Specifications:
• Length: 8 inches
• Thickness: 0.45 mm
• O.D.: 10.000 ± 0.013 mm
• I.D.: 9.1000 ± 0.013 mm
• Maximum pressure: 150 psi
| Manufacturer | Wilmad |
|---|
