Suprasil Aqueous Flow Cell

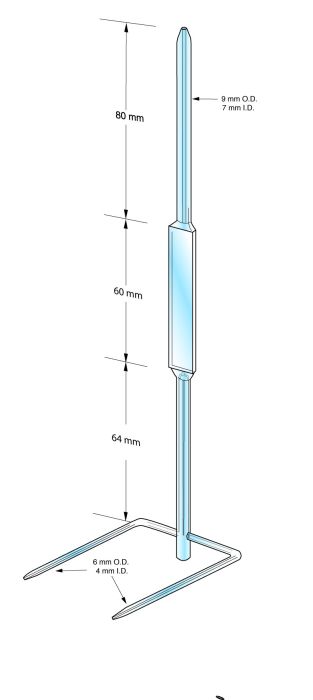

Continuous flow is a powerful tool to study free radical intermediates with short life-time at steady state. Wilmad-LabGlass manufactures two types of flow cells: room and variable temperature for such applications. The length of the flow tube is 130 mm before reaching the mixing chamber, dead volume is less than 9.5 µL, which corresponds to 2 ms dead time at 5 mL/sec flow rate. Inlet and outlet ports could be connected to 1/8” or 1/4” Tygon tubing depending on the size of the ports. Please contact us for flow cells for stop-flow studies with HPLC fitting. Rinse the cell thoroughly after each usage to prevent clogging.

Recommended VT air flow rate at 5-15 L/min, and sample flow rate at 0.1-1 mL/sec to provide sufficient heat exchange to maintain desired temperature. Fits most Bruker TE102 and JEOL TE011 cavities.
