TE102 Standard Aqueous Cell Spectroscopic Quality
Code
WG-812-S-Q
$2,061.10
For All TE102 except JEOL
Cell product numbers that include the letter "S" indicate that optically polished flat windows are joined to the polished wall ends via a special thermal fusion technique to form an ultra high precision bore flat cell. The two windows are parallel to each other within several visible light wave numbers. These items are recommended for EPR experiments that requires critical coupling.

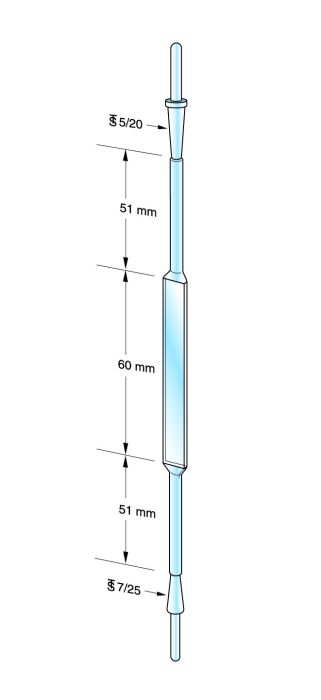

Product Specifications:
• Plate Material: Suprasil
• Flat section Width: 10.5 mm
• Flat section Length: 60 mm
• Upper Tube O.D.: 7 mm
• Upper Tube I.D.: 5 mm
• Lower Tube O.D.: 7 - 9 mm
• Lower Tube I.D.: 2.5 - 2.0 mm
• Sample volume: 150 µL
Product Specifications:
• Plate Material: Suprasil
• Flat section Width: 10.5 mm
• Flat section Length: 60 mm
• Upper Tube O.D.: 7 mm
• Upper Tube I.D.: 5 mm
• Lower Tube O.D.: 7 - 9 mm
• Lower Tube I.D.: 2.5 - 2.0 mm
• Sample volume: 150 µL
| Manufacturer | Wilmad |
|---|
